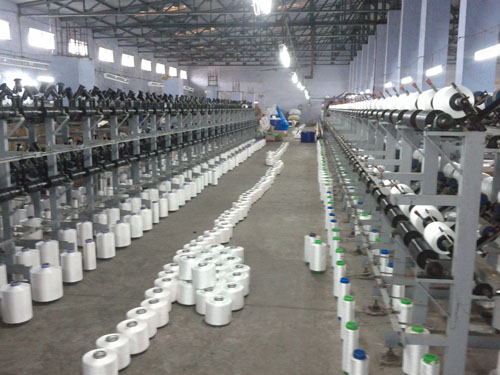

Special Features
- Sturdy and rigid construction for vibration free operation.

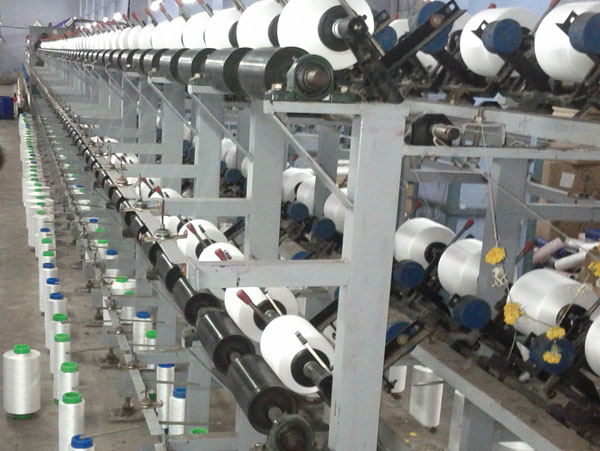

- New concept of double deck frame both side to accommodate 8 drums per section,
so substantial space saving on floor area.
- Machine is designed to wind cotton, staple and synthetic yarn to produce soft wound
package.
- Universally approved "Metal Drums or Backlight Drums" .
- The accelerating pressure reduction of the package through dead weights compensates
the increasing pressure of the package to the drum with increasing diameter and
results in desired uniform density package.
- Spindle less cradle to hold s.s. dye spring and double arm package holder (mandrel)
with bearings & rubber rings to prevent direct contact of metal on drum.
- Double disc yarn tension device with self threading guide wires and high quality
ceramic.
- Two separate electric motors for independent drive of each side of machine to drive
drum shaft and gearing system. The traverse motion is achieved through the drum
shaft.
- Cradle can accommodate dye spring or perforated tube / cone.
Shogging Device
Specially designed lateral shogging motion device to produce soft edges of package.
Ribbon Breaker
Electronically controlled Anti-Ribbon device to prevent ribbon formation in wound
package. On-Off pulses per minute and off time is adjustable. We also allow to provide
invertor option.
Length Measuring And Control System
2 seprate drop timer for 2 sides.
|
Technical Specifications
|
|
Data
|
Parameter
|
Machine Arrangement
|
Double Sided Double Deck
|
|
No. Of Winding Heads
|
48 To 240
|
|
No. Of Winding Heads Per Section
|
8
|
|
Section Pitch (mm)
|
7 20
|
|
Type of Winding
|
Random
|
|
Yarn Traverse
|
6" / 152 Mm , 8" / 200 Mm and 10" / 250 Mm
|
|
Supply Package Type
|
Cheese / Cone
|
|
Produce Package Type
|
Dye Spring / Perforated Tube / Steal Tube
|
|
Package Destination
|
Dyeing
|
|
Produce Package Diameter
|
200 Mm Max.
|
|
Winding Speed (mtr. / Min.)
|
350 Min. / 450 Max.
|
|
Height Of The Machine in mm
|
1370
|
|
Width Of The Machine in mm
|
1220
|
|
Drive Motor End Lg. (mm) /Sogging Attachment
|
700
|
|
No. of section
|
15
|
18
|
21
|
24
|
27
|
30
|
|
No. of Drums
|
120
|
144
|
168
|
192
|
216
|
240
|
|
Length of M/c. in (Ft.)
|
38
|
45
|
51.5
|
58.5
|
65.5
|
72.5
|
|
Main Drive Motor (HP)
|
4.0
|
4.0
|
4.0
|
4.0
|
6.0
|
6.0
|
|
|
